Dual Wireless Water Pressure Gauge set

Save time and resources when conducting fire hydrant flow tests!  One person can conduct a water flow test by utilizing a Pressure Sender on the test hydrant that sends real time readings to the display.  Use a 2nd Pressure Sender with flow calc enabled on the gauge port of your flow diffuser and see residual pressure and flow simultaneously.

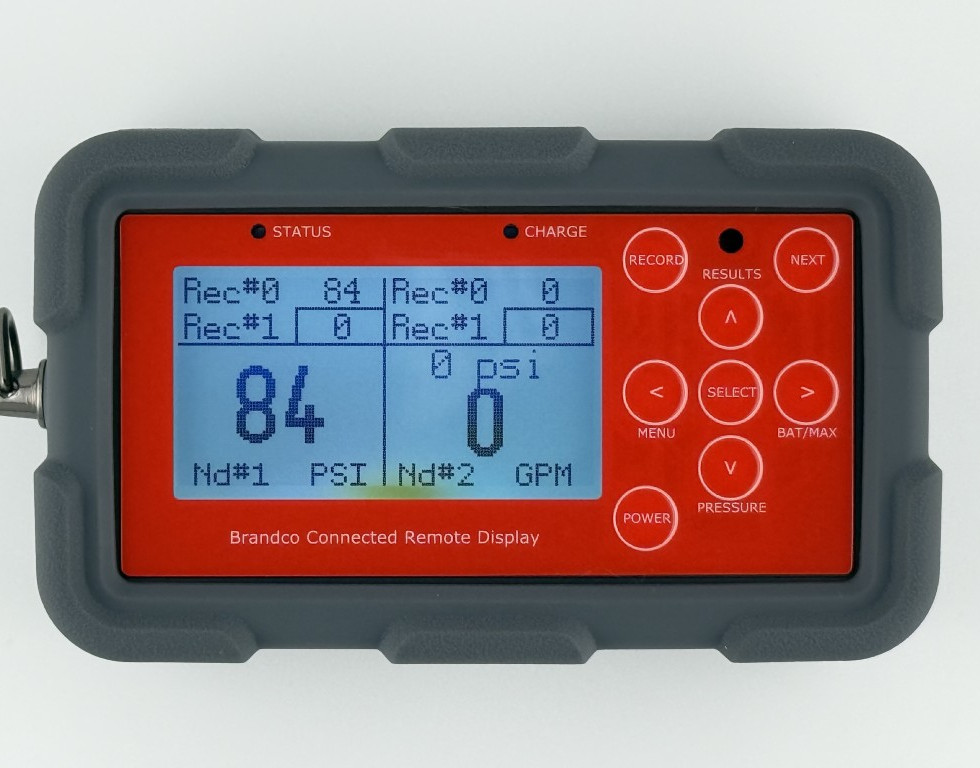

The Remote Display calculates GPM using standard velocity pressure formulas found in NFPA291. It can be used with any manufactures equipment.  A large 3.1" daylight readable LCD makes it easy to see both the test hydrant pressure and the simultaneous GPM & PSI from the flow device at a glance while you are working, and LEDs give a visual indication of data transmission.  It records 10 test records with a button push, tracks max psi, flow and usage, and shows battery life for itself and connected nodes. You can set options like PSI Target Alert to get a visual when pressure dropped 25%, change radio range to get up to 3000' line of sight, and more.

Flexibilty is built in and you can use either one or both Senders any time.  The display is smart and will auto-detect your second Sender and split screen the display. No configuration, just turn it on and it works.

The hard case is far nicer than the rugged IP65 rated case needs but its integrated charging ports are handy to keep the built in li-ion batteries topped up with an external USB-C charge port.  With 30 hours continuous operation battery life, you can get in a lot of water flow testing first.

Range: The range of a wireless signal is always limited by obstructions. Transmitting through machines, walls, and structures degrades signal strength and reduces range capability. In this environment you can expect 800' of range.  Located outdoors there are typically less obstructions and with either line of site or limited buildings in between the transmitter range will be 3000'-3500'.

• Displays PSI or PSI/GPM realtime with updates 3x/sec (depending on range setting)
• 10 user recordable pressure/flow records for easy recall

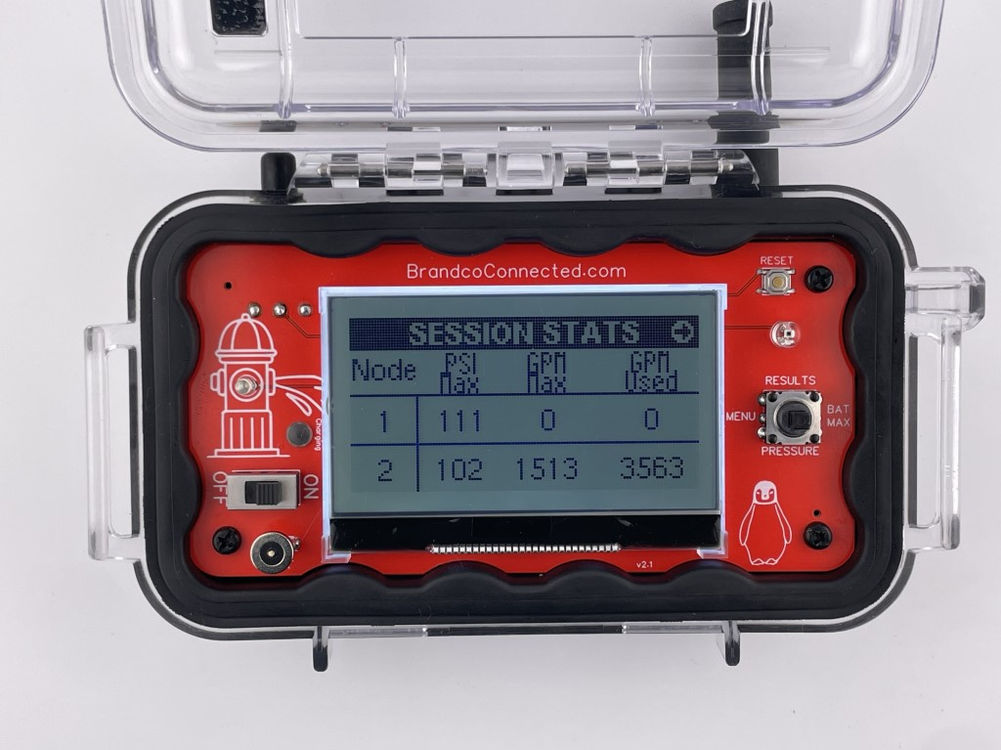

• Automatic max pressure, flow and gallon usage recording
• Large 3.1" daylight readable LCD screen with automatic backlight
• Range: 800' urban standard up to 3000' line-of-sight at user selectable max setting
• 30hrs continuous use between charges -  built in 2000mah  rechargeable battery
• LED data transmission indicator
• Housed in rugged IP65 housing

WARRANTY

Unlimited 5 Year Warranty - You see, it doesn't matter how it happened, whose fault it was, or where you purchased it.

• Fully transferable
• No warranty card to fill out
• No receipt needed to hang on to

If you ever have a problem, no matter the cause, we promise to take care of you.

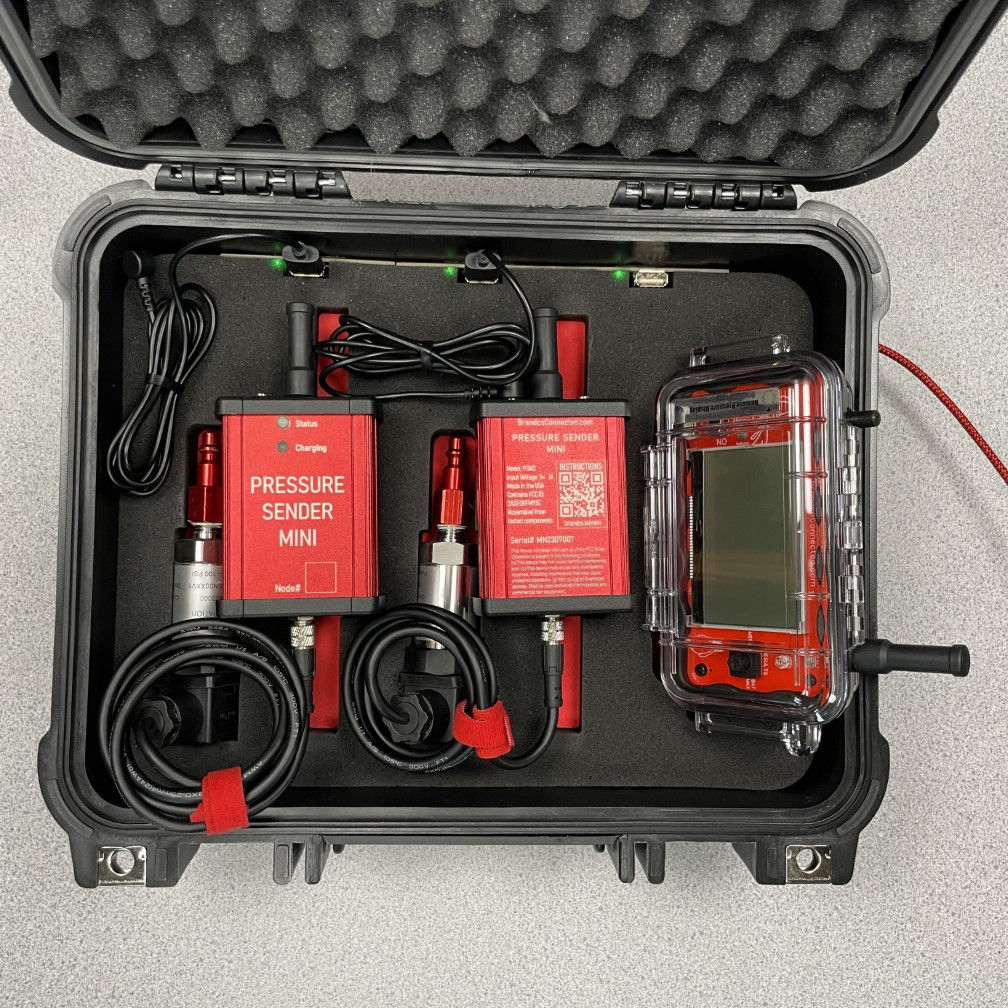

• (1) pressure sender with quick connect and lanyard
• (1) flow sender with quick connect and lanyard
• (1) wireless pressure display with safety lanyard
• (1) 11.81" x 8.87" x 5.18" hard carrying case with foam inserts
• (3) magnetic attachment usb charge cords
• (1) extra 1/4” NPT quick connect for gauge ports
• (2) NIST certificates
